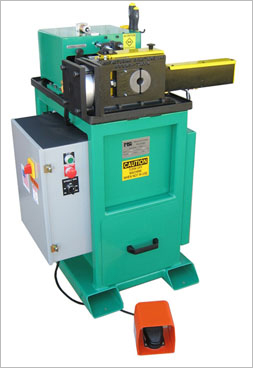

C3A ChamferMate®
Bar, Stud and Tube Chamfering Machine

The Model C3A ChamferMate® is a compact chamfering and beveling machine that features a rigid one-piece ductile iron vise, top plate and spindle housing, linear ball rails, a heavy-duty three-bearing spindle, and an electronic variable-speed drive to provide years of dependable service. The ChamferMate C3A is most commonly used as a deburring machine, but with the 5HP motor upgrade, can be used for pipe beveling applications as well. With a 1/2" to 3 inch OD capacity (2-1/2" pipe), solid bar, bolts, pipe, and tubing can be machined or deburred easily and efficiently.

Model C3A ChamferMate® Standard Features

• 1/2" to 3" OD Diameter Capacity
• 500 to 2000 rpm electronic variable speed drive

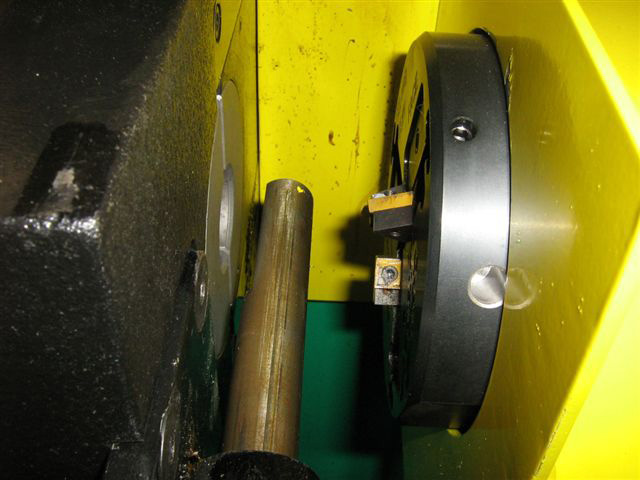

• Adjustable cutter head for OD chamfering

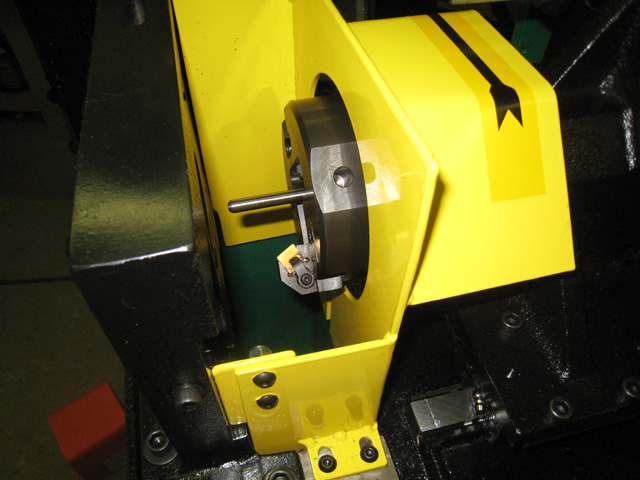

• Totally enclosed cutting area with chip drawer
• Fully adjustable feed rate
• Through-the-spindle stop rod
• 3-HP / 3 phase motor
• Forklift slots
• Collet and tool rack on side
• Compact 24" x 36" floor space

Fact Sheet Maintenance Guide Spare Parts List

Fastener Fabrication Spec Sheet

Chamfering and Pipe Beveling Benefits

• No more hand grinding or beveling in a lathe
• Many times faster than had methods
• Cycle times normally in the 2 to 5 second range
• Totally enclosed cutting area for safety
• Accurate repeatable chamfers
• Sturdy construction and quality materials for years of dependable service
• Low operation cost

C3A Options Available

• Sliding stop for tubing or pipe

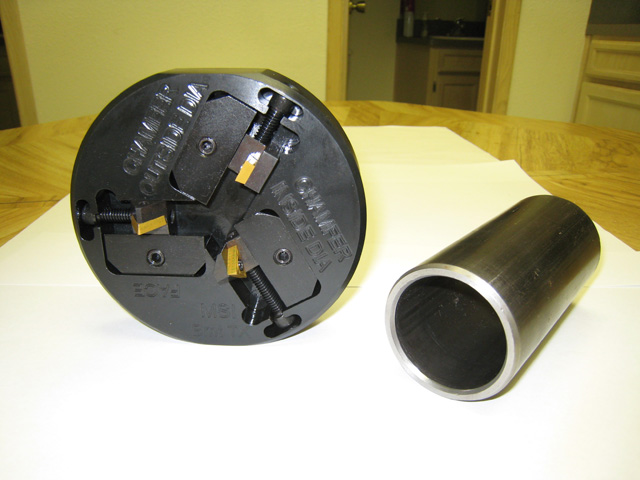

• Three-tool head for ID, OD and facing of tubing or pipe
• 5-HP motor
• Custom angle tool holders
• OD turning head
• Center drill head
• Pencil-pointing head
• Casters
• Coolant
